The Cisco phone system & Cisco IP Phone 7965G demonstrates the latest advances in VoIP telephony, including wideband
audio support, backlit color display, and an integrated Gigabit Ethernet port.The CiscoIP phones addresses the needs of the
executive or major decision maker, administrative assistants, and those working with bandwidth-intensive applications on
colocated PCs. This 7965G IP phone includes a large, backlit, easy-to-read color display) for easy access to communication
information, timesaving applications, and features such as date and time, calling party name, calling party number, digits dialed,
and presence information. Cisco IP Phone 7965G also accommodates Extensible Markup Language (XML) applications that take
advantage of the display. The Cisco IP Phone 7965G provides direct access to six telephone lines (or combination of lines, speed
dials, and direct access to telephony features), four interactive soft keys that guide you through call features and functions, and an
intuitive four-way (plus Select key) navigation cluster. A hands-free speakerphone and handset designed for high-fidelity
wideband audio are standard, as is a built-in headset connection.

Features and Benefits Cisco IP Phone 7965G

The Cisco IP Phone 7965G is designed to grow with Cisco phone system and your organization and enhancements to your Cisco
phone system capabilities. The dynamic feature set allows the phone to keep pace with your requirements through regular
software updates. Firmware changes can be downloaded from Cisco.com. No hands-on moves and changes are required with
the phone-you can simply pick up the phone and move to a new location anywhere on your network. The Cisco phone system &
Cisco IP Phone 7965G also provides many accessibility features..

Cisco Phone System UC and IP Phones

Cisco IP Phone 7965G Features

Feature
Description/Benefit

Display
5-inch (12.5 cm) graphical TFT color display, 16-bit color depth, 320 x 240 effective pixel resolution, with backlight. Allows for
greater flexibility of features and applications, and significantly expands the information viewed when using features such as
Services, Information, Messages, and Directory. Display also supports localization requiring double-byte Unicode encoding for
fonts.

Wideband Audio
Support for wideband (G.722 codec, adherence to TIA 920), including handset, headset, and speakerphone (see Q&A for details).

Codec Support
G.711a, G.711µ, G.729a, G.729ab, G.722, and iLBC audio compression codecs are supported (see Q&A for details).

Speakerphone
Full-duplex speakerphone with acoustic echo cancellation.

Directories Key
Ready access to missed, received or placed calls (plus intercom history and directories). Incoming messages are identified and
categorized on the display, allowing users to quickly and effectively return calls using direct dial-back capability. Corporate
directory integrates with the Lightweight Directory Access Protocol Version 3 (LDAP3) standard directory.

Settings Key
Allows user to adjust display brightness, select background images (if available), and select ringer sounds through the User
Preference menu. Network Configuration preferences also can be set up (usually by the system administrator). Configuration can
be set up either automatically or manually for Dynamic Host Control Protocol (DHCP), Trivial File Transfer Protocol (TFTP), Cisco
Unified Communications Manager, and backup Cisco Unified Communications Manager instances. Other available Settings
submenus include Device Configuration, Security Configuration, and Model Information.

Services Key
Allows users to quickly access diverse information such as weather, stocks, quote of the day, or any Web-based information
using XML.

Help Button
Online Help gives users information about the phone keys, buttons, and features.

Speakerphone, Mute, and Headset Buttons
Speakerphone includes Speaker On/Off, Microphone Mute, and Headset buttons that are lit when active. For added security, the
audible dual tone multifrequency (DTMF) tones are masked when the speakerphone mode is used.

Navigation Cluster with `Select' Button
Four-way navigation cluster allows users to scroll vertically and horizontally. At the center of the cluster is a `Select' button that can
be used for selection of an in-focus item (for example, to open an underlying menu)

Display Button
Indicates when phone is in power-saving sleep/inactivity mode (button is lit), and can be used to awaken the display. Inactivity
period is configured by the system administrator.

Ethernet Switch
Internal 2-port Cisco Ethernet switch allows for a direct connection to a 10/100/1000 BASE-T Ethernet network through an RJ-45
interface with single LAN connectivity for both the phone and a co-located PC. System administrator can designate separate
VLANs (802.1Q) for the PC and phone, providing improved security and reliability of voice and data traffic.

Headset Port
Dedicated headset port eliminates the need for a separate headset amplifier and allows the handset to remain in its cradle,
making headset use simpler. Both wideband (G.722) and narrowband headsets are supported.

Volume Control
Provides easy decibel-level adjustments for the speakerphone, handset, headset, and ringer. The handset is hearing
aid-compatible (HAC). Additional volume control gain can be achieved using an inline handset amplifier.

Adjustable Foot-Stand
Stand is adjustable from flat to 60 degrees to provide optimum display viewing and comfortable use of all buttons and keys. The
foot-stand is keyed to match standard wall-jack configurations for wall mounting. Optional wall-mount brackets are also offered.

Expansion Module Support
An optional add-on module, the Cisco Unified IP Phone Expansion Module 7914, provides 14 additional buttons for programming
directory numbers or speed dials. Up to two expansion modules may be used.

Multiple Ring Tones
More than 24 defined user-selectable ring tones are available. Ring tones may also be personalized through use of the Cisco
Unified Phone Application Suite.

Americans with Disabilities Act (ADA) Features
Handset is hearing aid-compatible and meets Federal Communications Commission (FCC) loudness requirements for the
Americans with Disabilities Act (ADA). Section 508 loudness requirements can be achieved using industry-standard inline
handset amplifiers such as Walker Equipment W-10 or CE-100 amplifiers. Dial pad is also ADA-compliant.

Quality of Service (QoS) Options
Supports differentiated services code point (DSCP) and 802.1Q/p standards.

Security
Positive device identity through X.509v3 Certificates, digitally signed images, cryptographically secure provisioning, and secure
signaling and secure media with AES-128. The phone also contains an 802.1X supplicant and supports EAPOL pass-through.

Language Support
Built-in support for more than 30 languages (dependent on Cisco Unified Communications Manager version).

Configuration Options
IP address assignment can be statically configured or configured through the DHCP client.


Buy from a trusted Cisco Partner Detailed Description and product outline Cisco UC500 phone system and Cisco CallManager.
Cisco UC500 phone system and Cisco CallManager, Cisco Unity VoIP phone system for businesses of all types and sizes
Contact us:905-761-2111

Cisco® Unified Communications Solutions unify voice, video, data, and mobile applications on fixed and mobile networks,
delivering a media-rich collaboration experience across business, government agency, and institutional work spaces. These
applications use the network as the platform to enhance comparative advantage by accelerating decision time and reducing
transaction time. The security, resilience, and scalability of the network enable users in any workspace to easily connect
anywhere, anytime, and anyplace, using any media, device or operating system. Cisco Unified Communications is part of a
comprehensive solution that includes network infrastructure, security, wireless, management applications, life cycle services,
flexible deployment and outsourced management options, and third-party applications.

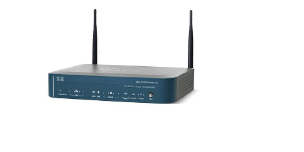

To remain competitive, most small businesses need a voice system that can help reduce phone costs and boost employee productivity. The Cisco Unified
Communications 300 Series for Small Businesses, Model UC320W, meets these needs. It's a system that fits your budget, while significantly improving
collaboration within your company.
Small Businesses Benefits

Designed to support organizations with up to 24 employees, the UC320W offers business-class calling and messaging with full key system and small
private branch exchange (PBX) features. The system is flexible enough to support a wide choice of Cisco SPA Series IP phones, and includes integrated
wireless networking. The UC320W was designed with the small business owner in mind, providing all the features you need.

With the UC320W, you can lower your communications expenses, improve employee productivity, and respond to customers better. The system is also
designed to easily grow with your business.

Features:

* Voicemail and automated attendant
* Voice to email notification
* Support for Cisco SPA300 and SPA500 Series IP Phones
* Supports for up to 12 public switched telephone network (PSTN) lines (FXO)
* Includes licenses for up to 24 phones (maximum 9 analog phones/fax)
* Embedded state-of-the-art, web-based configuration utility included

Powerful Data Networking:

* 4-port Gigabit Ethernet (1000 Mbps) switch with VLAN support, to connect devices or expand
* Gigabit Ethernet WAN port to connect to the Internet

Integrated Wireless:

* Built-in 802.11b/g/n wireless access point allows for data networking and Cisco SPA525G2 wireless desktop phone support

Please Call for more information and pricing:905-7612111
